Dětské elektrokolo Woom UP 5 Limited, Cirrus Cloud bez varianty BV

Motor

Fazua evation mid-drive system, 250 W nominal power, 55 Nm torque, assistance up to 20 km/h, three support levels, removable drive unit (3.3 kg), configurable via Fazua Rider app

Síla motoru

55 Nm

Pozice motoru

integrated into downtube as a removable drive unit

Značka motoru

Fazua

Dojezd

19 až 62

Baterie

Removable Fazua evation drive unit with integrated battery, capacity 250 Wh, unit weight ~3.3 kg; cover for down tube available separately

Kapacita baterie

250 Wh

Materiál rámu

Hliník

Rám

Ultralight aluminium 6061-T6 frame with conformed and hydroformed tubing, lowered top tube, long wheelbase and sport geometry

Váha

15,88 kg

Geometrie

Unisex

Nosnost kola

80 kg

Typ vidlice

Vzduchová

Vidlice

Hydraulic air suspension fork with adjustable compression and rebound damping, lock function, 80 mm travel, tapered steerer (small tapered 1 1/8"–1"), axle 100 x 15 mm, Post Mount brake mount

Typ brzd

Hydraulické kotoučové

Brzdy

Hydraulic disc brakes (Promax) with child-appropriate ergonomic levers

Brzdové páky

Ergonomic brake levers sized for small children's hands

Přední brzda

Promax hydraulic disc brake, 160 mm rotor (front)

Zadní brzda

Promax hydraulic disc brake, 140 mm rotor (rear)

Brzdové kotouče

160 mm front / 140 mm rear

Velikost kol

24"

Přední náboj

Through axle 100 x 15 mm, aluminium hub with sealed industrial bearings

Náboje

Aluminium hubs with sealed industrial bearings; through axles (100x15 mm front / 135x12 mm rear)

Zadní náboj

Through axle 135 x 12 mm, aluminium hub with sealed industrial bearings

Výplet

20 G14 spokes, double-crossed lacing

Pláště

24 x 2.35" Schwalbe Rocket Ron (ADDIX SPEED), presta valves

Kola

Superlight woom OFF DISCO TEC double-chamber aluminium rims, double-chamber, aluminium nipples

Řazení

SRAM NX-Trigger 11-speed trigger shifter

Přehazovačka

SRAM NX rear derailleur

Kliky

Aluminium forged crank arms, 130 mm length, small Q-factor

Kazeta

11–42 T cassette (11-speed)

Převodníky

Narrow Wide Direct Mount 28T single chainring

Převody

SRAM NX 11-speed drivetrain, trigger shifter, 11–42 cassette

Gripy

Fully silicone child-sized grips with small diameter and screw-in end plugs

Řídítka

Aluminium ergonomic handlebar, 680 mm width, 20 mm rise, silver anodized

Hlavové složení

Fully integrated 1 1/8"–1" headset with sealed industrial bearings

Pedály

Platform composite nylon pedals with chrom-moly axle and sealed industrial bearings

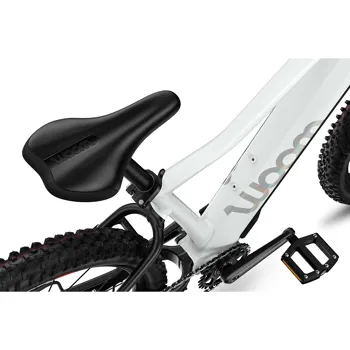

Sedlo

Ergonomically shaped children's saddle matched to pelvic anatomy for this age group

Sedlovka

Anodized aluminium seatpost 27.2 x 300 mm with maximum insertion indicator

Představec

Forged aluminium CNC machined stem, Flip Flop +/-15°, 50 mm length
